ACERETECH machine type：ATE75/180 double stage pelletizing machine
Customer location: Japan

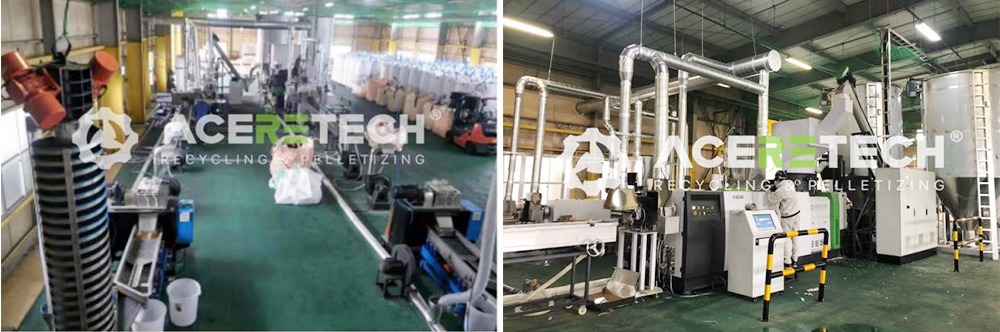

ATE75/180 double stage pelletizing machine
Machine configuration:Screw conveyor--Feeding machine--Parallel twin screw extruder--Large area piston type screen changer --180 single screw extruder-- Large area piston type screen changer--Strands pelletizing system--Electric control cabinet
Detailed introduction:
Screw conveyor：Feeding system, with U-shaped conveying pipe, using stainless steel material, with storage silo, stainless steel bottom with forced push screw.
Feeding machine：Installed above the main inlet of the extruder Equipped with a horizontal mixing device to prevent material bridging
Parallel twin screw extruder：Screw material Bimatel is more wear-resistant, melts and plasticizes gently, making the pellets quality better.

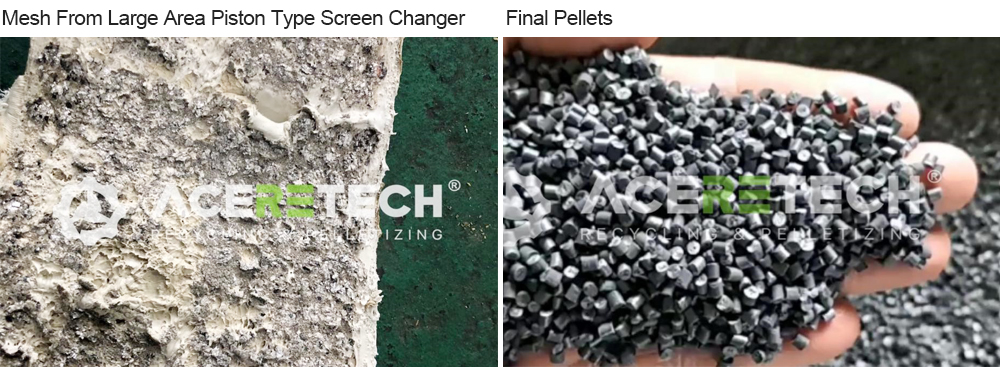

Large area piston type screen changer：Large screen changing area reduces the frequency of workers' screen changing, ensures the output and reduces the cost.
180 single screw extruder：Special screw design, the barrel and screw are made of nitrided steel, and the core of the shaft is water cooled to better ensure the quality of the particles.
Large area piston type screen changer: Large screen changing area reduces the frequency of workers' screen changing, ensures the output and reduces the cost.
Strands pelletizing system:Water tank: special design, the material strip automatically follows the direction of the water flow to the direction of the pelletizer, and can be moved back and forth by the roller control.
Pelletizer: high-quality precision granulation
Vibration System: preliminary filtration of water, and screening of qualified particle sizes.
Lifting drying system:To let material gently be dryer.
Electric control cabinet: With PID parameter self-adjusting function and heater disconnection indication function, it is also equipped with an ammeter to display the heater current; the host is equipped with a current overload protection system.
Weighing system: Realizing capacity inspection and material weighing.
