Suitable for fully automated filling operations of granular materials in the rubber and plastic industry, which can achieve unmanned operations such as fully automated bag preparation, bag retrieval, bag opening, bagging, metering, filling, unloading, bag mouth shaping, sealing, palletizing, stacking and storage.

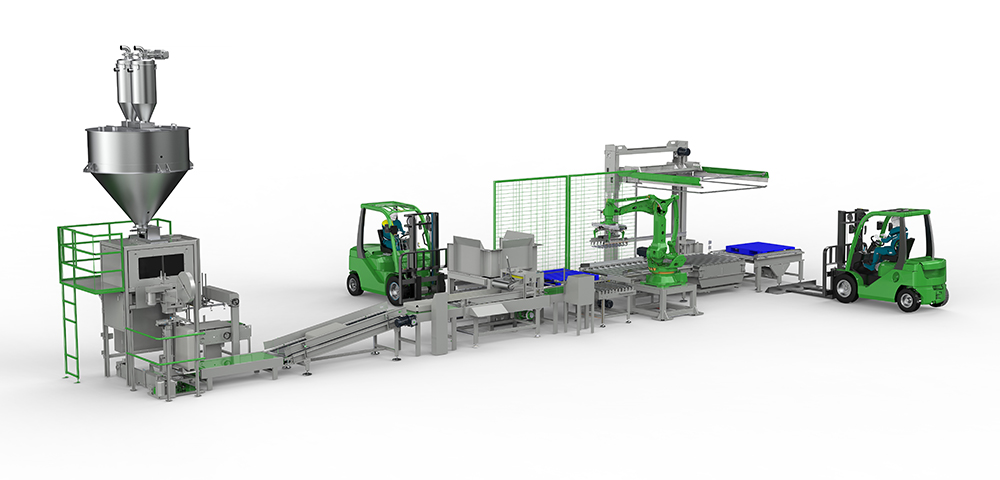

Fully Automatic Bagging and Packaging Machine System
The materials are fed into the feeding mechanism of the fully automatic packaging machine by the front-end conveyor or silo, and the fully automatic packaging machine packages the materials
Product Features
Parameters
|
Model
|
Material to be packaged
|
Weighing range
|
Packing speed | Packing accuracy | Power |
|
|
Pellets |
20-25kg/bag
|
200bag/h | ±0.1% | 2kw |
|
ACGS-DA(R)
|
Gas consumption
|
Weight
|
Working condition
|
Air pressure
|
Noise
|
|
|
18 m ³ /h |
1.5-2t
|
0-40℃
|
0.5-0.7MPa
|
≤ 75db |
Palletizing Conveyor System
After the sealed package is poured onto the receiving belt conveyor, the climbing conveyor lifts the package to the required height for robot palletizing and grabbing. It then enters the weight recheck scale to recheck the accuracy. Products with unqualified accuracy are removed by the removal and shaping machine, while qualified products are shaken and shaped by the vibration shaping and pressing conveyor. After shaping is completed, the package is transported to the position of the coding
conveyor for coding. After coding is completed, the package is transported to the grabbing conveyor and waiting for the robot to grasp the palletizing.
Palletizing Conveyor System Including
Stacking Robot System
* Adopting ergonomic design, comfortable and lightweight operation ;
* Display in both Chinese and English, with a user-friendly interface ;
* Dual safety switch, fully ensuring the safety of personnel operation ;
* Equipped with USB interface, supporting import/ export of teaching programs ;
Tray Storage System
The pallet storage warehouse transports empty pallets to the palletizing conveyor through the empty pallet conveyor and waits for the robot to palletize them. When there are material packages on the grabbing conveyor, the robot starts palletizing and stacks them onto the pallet of the palletizing conveyor; Complete the palletizing operation according to the prescribed grouping mode, and the full stack of material packages will enter the online winding machine for automatic film wrapping, and then be covered with film on the top by the top covering machine; The wrapped products enter the full stack fork picking conveyor and wait for the forklift to pick them up.
