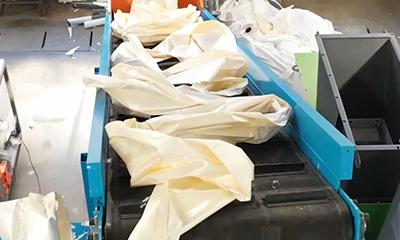

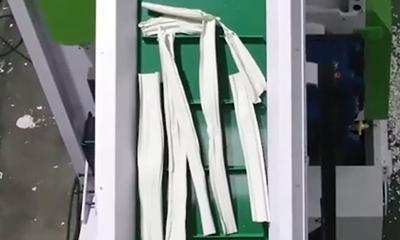

Belt Conveyor
As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls’ scraps, roll hauling off device is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor’s room is.
Metal Detector
Optional Ferrous Metal Permanent Magnetic Belt or metal detector can prevent metal specials from entering the crusher and effectively protect the blades of the crusher.

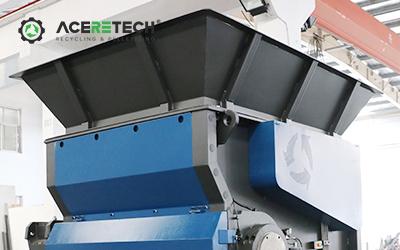

Hopper
Special designed hopper to avoid material flying out. The machine is fitted with a large filling hopper and can be loaded by conveyor belt, fork lift, crane or wheel-loader. This funnel can be adapted to suit individual requirements and guarantees a continuous and economical supply of material.
Hydraulic Ram
The hydraulically operated pusher feeds the material towards the cutter automatically by load-related controls. The hydraulic system is equipped with overflow valves and volumetric flow controls, which can be both set according to the demands of the input materials.
Rotor
The rotor is made of seamless steel pips with the diameter of 750mm and operates at a speed of 52 rpm. The concave ground, aggressive and 4-way rotating knives are mounted in the grooves of the rotor. This enables a reduction of the cutting gap between the counter knives and the rotor and guarantees a high flow rate, low power consumption and maximum output of ground material.
Knife Blades Knife
Blades Material: DC53 Higher hardness (62-64 HRc) than D2/SKD11 after heat treatment Twice the toughness of D2/SKD11 with superior wear resistance Substantially higher fatigue strength compared to D2/SKD11
Screen
The screen mounted beneath the rotor determines the size of the required flakes. The screen is also easily accessible by a separate flap and can be changed easily. The screen can be opened or closed hydraulically.
Shredder Chamber
The shredder chamber is welded with 30mm ultra-high hardness steel plate, which is wear-resistant, corrosion-resistant, low-noise, and has a longer service life.
Motor
Adopt imported brand motor WEG, low energy consumption, low noise, long service life.
Electronic Control
The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA.
Tool Installation
The tool can be quickly adjusted outside the machine, which minimizes downtime and makes tool replacement easier.
