ACERETECH SCF series self-cleaning filtration system, using the latest research and development technology, can realize non-stop cyclic extrusion, especially suitable for heavy pollution plastic granulation, SCF filtration system can process and remove up to 5% of impurities in the melt , The impurities that can be separated are: paper, wood chips, aluminum, non-melting plastic and rubber, etc.
The traditional screen changer needs to replace the dirty metal filter in time, while the SCF system has continuous filtering performance and automatically removes impurities on the surface of the alloy filter plate, with an effective accuracy of up to 120 mesh. The advent of Asrit SCF self-cleaning filter has realized more efficient production of pelletizing lines with an output of more than one ton per hour.
Typical functions of SCF:
No filter screen is required, and the alloy filter screen has a long service life;
Reliable continuous filtration, stable pressure;
Complete self-cleaning work in the filter cavity, which is environmentally friendly and does not pollute the air;
Automatic scraping action to ensure continuous self-cleaning of the filter screen;
Reduce the waste of melt when the impurities are discharged;
The screen can be easily replaced in 30 minutes;
The filtration accuracy can reach 120 meshes, which can treat and remove 5% of impurities;
Short flow channel and large filter area reduce the back pressure of the filter chamber;
Larger filtration area, as many as 2.32 million micropores;
PLC control realizes full automation.

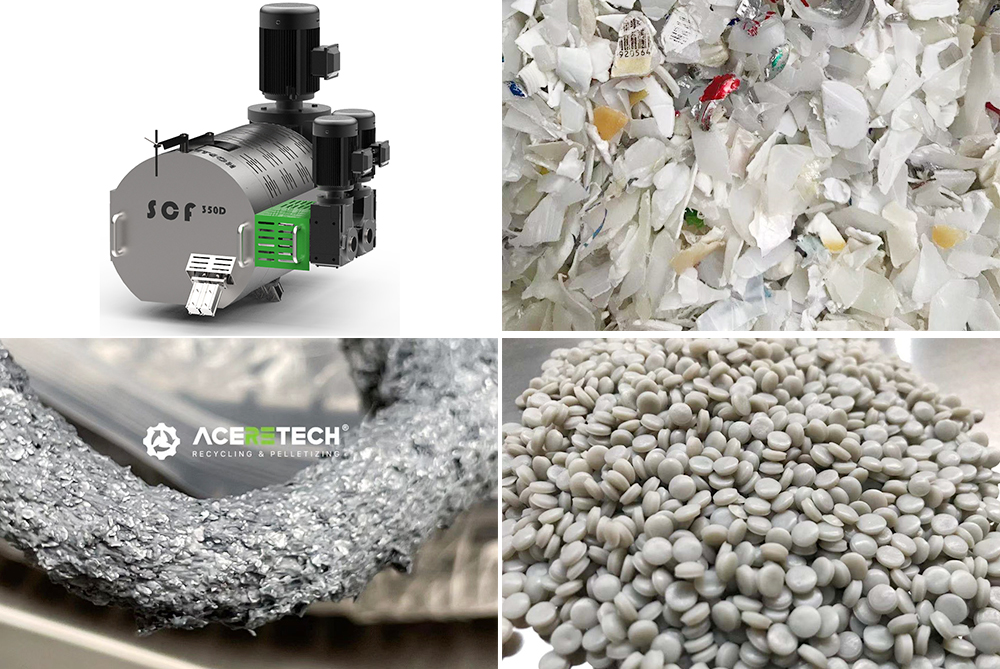

Material: HDPE hollow bottle flakes
Impurities: aluminum foil 2% + label 1%
Model: Single screw water ring pelletizing line + SCF350 self-cleaning filter
